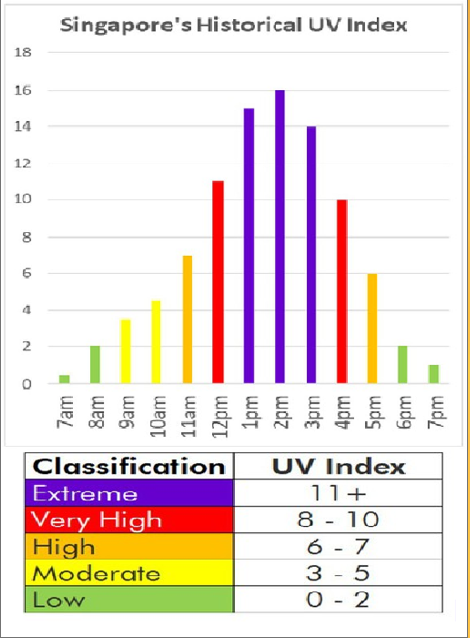

Do You Know UV Rays are Harmful to us?

UV C

Shortest waves, usually do not penetrate the Earth’s ozone layer

UV B

Medium waves that reach skin’s surface – can cause surface tanning, burning, and signs of aging.

UV A

Long waves that can penetrate deep into the skin’s surface, releasing free radicals and causing DNA changes that can result in skin cancers.

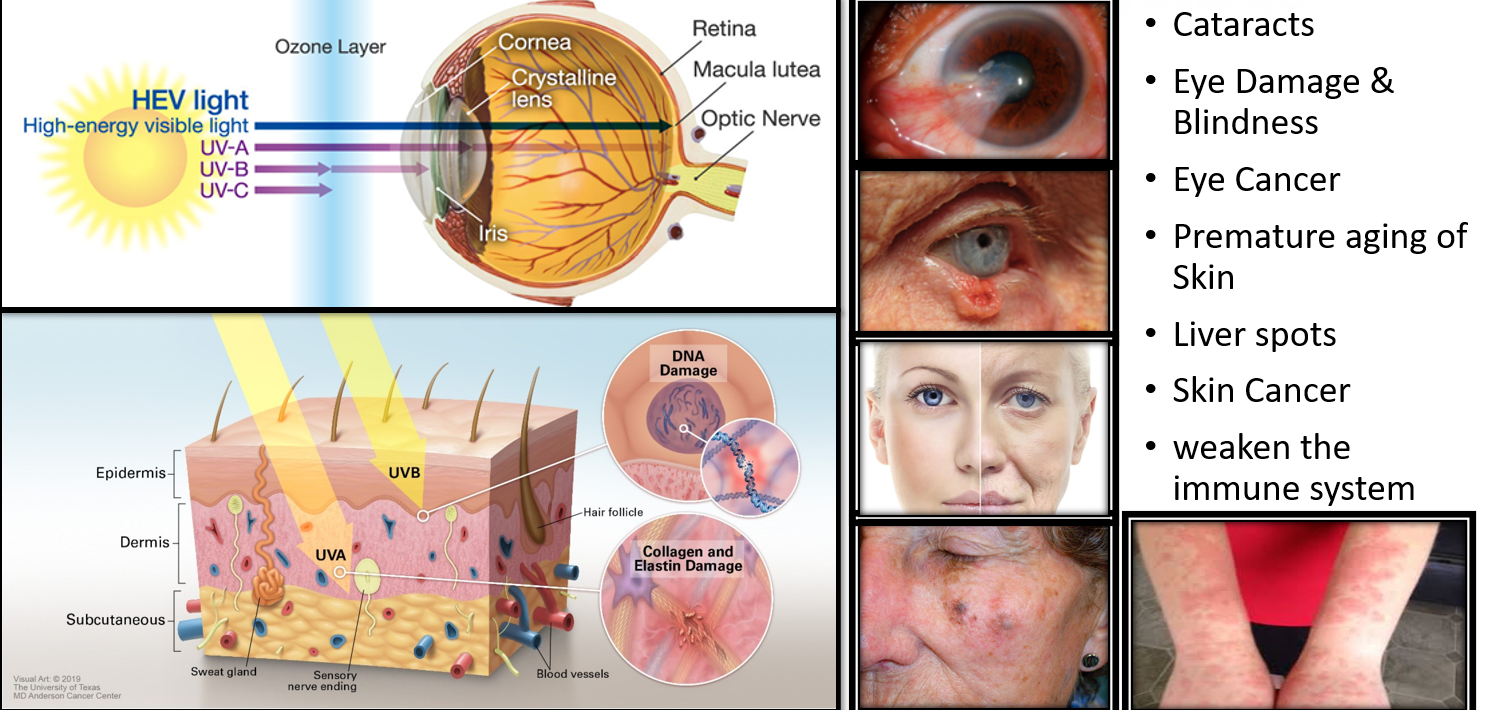

UVs are Harmful to Human Beings

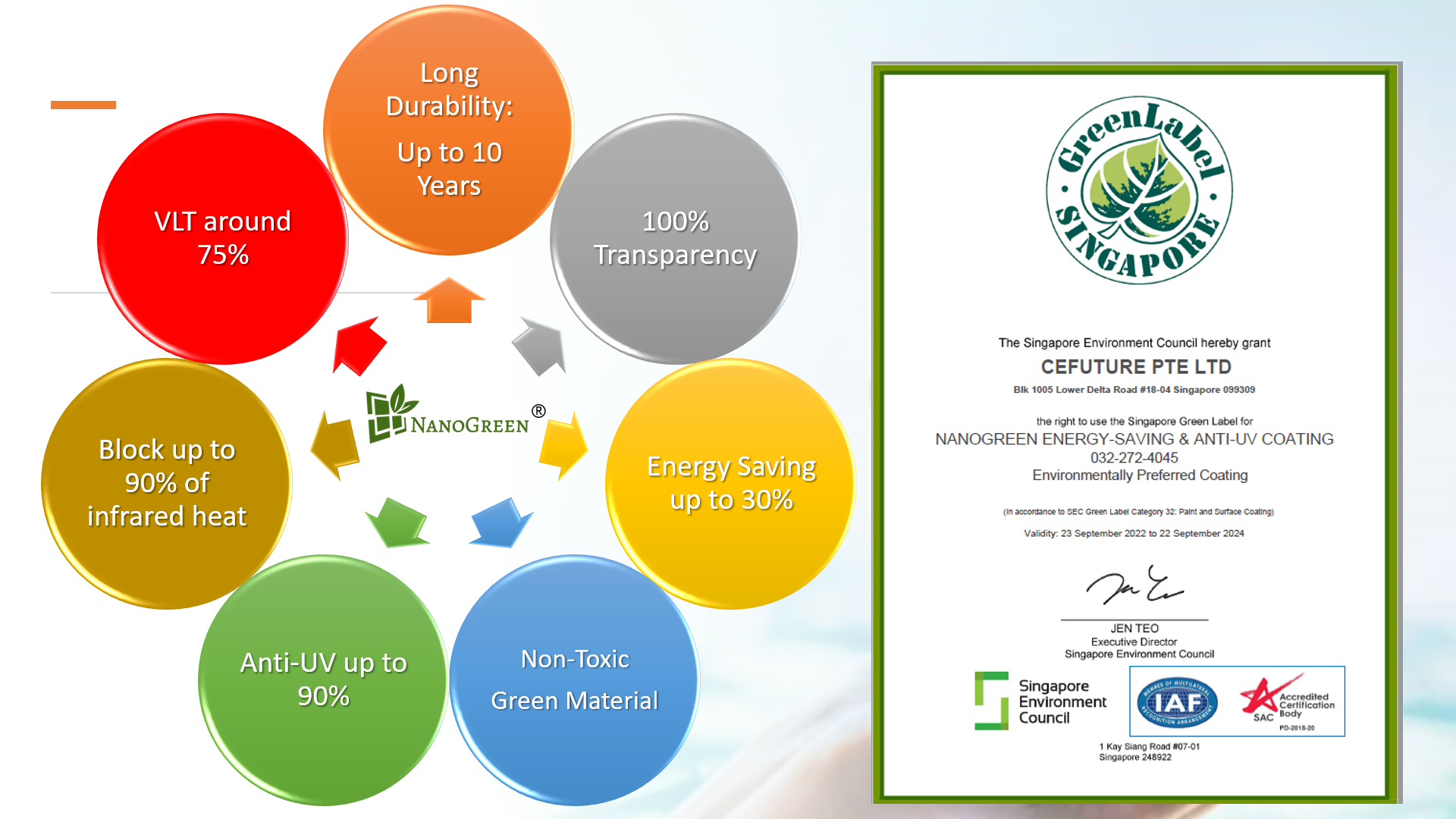

What are Benefits of the Coating?

Window Films VS Nano Coating

- Joint Line on Big Glass due to width limit of films
- View distortion and glare problem
- Hard to be applied on uneven glass
- Short durability around 5 years
- Strong glue left when the film is removed

- No joint line.
- No view distortion and could reduce much glare.
- Can be applied on any shape of glass.
- Long durability more than 10 years.
- Coating layer can be removed easier without any glue

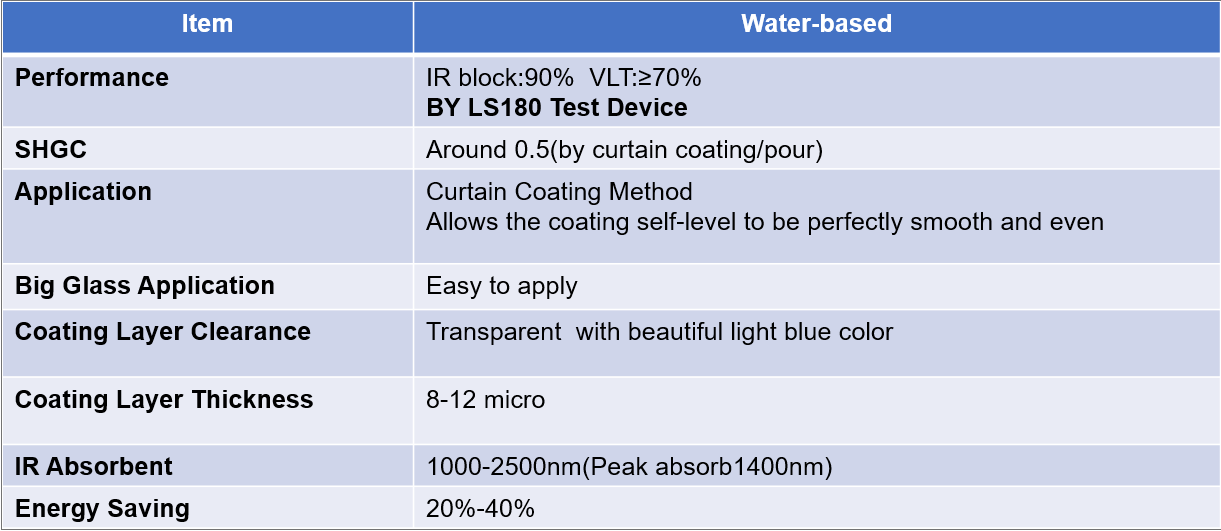

Technical Data Sheet

Testing of Different Coating Methods Effect

Curtain coating/Pour/Cascade

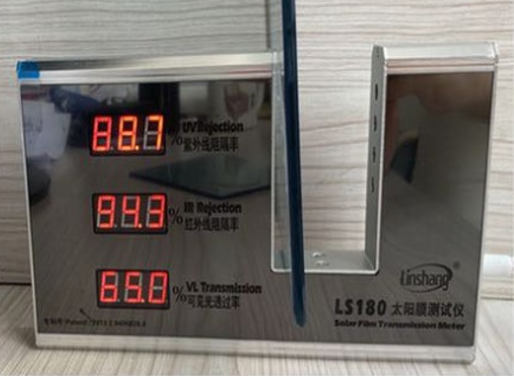

LS180: IR 1400nm UV 365nm
Glass Coating: UVR 88.7% IRR 94.3% VLT 65%

Spray /Brush

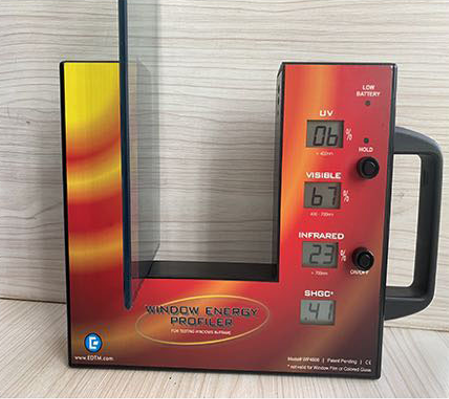

EDTM: IR 940nm UV 365nm
Glass Coating: UVR 94% IRR 77% VLT 67% SHGC 0.41

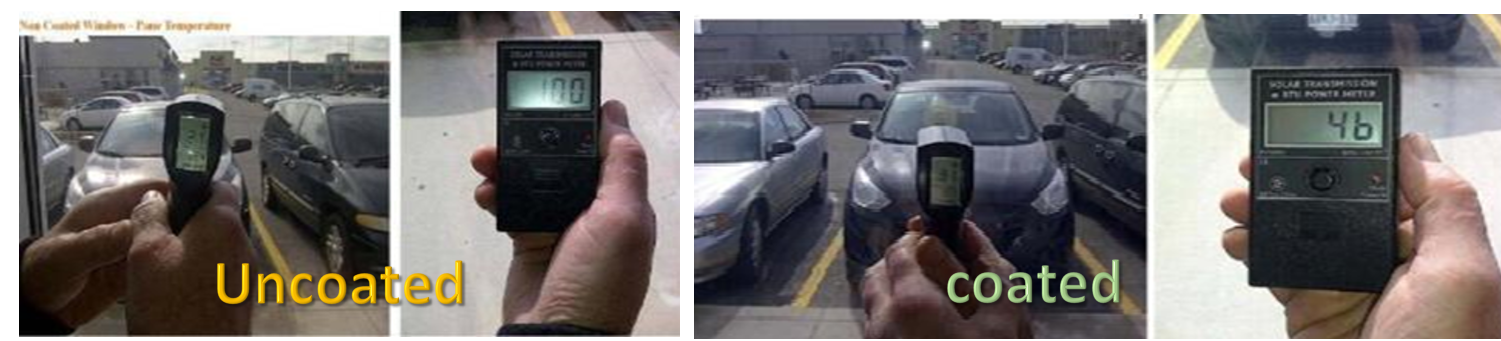

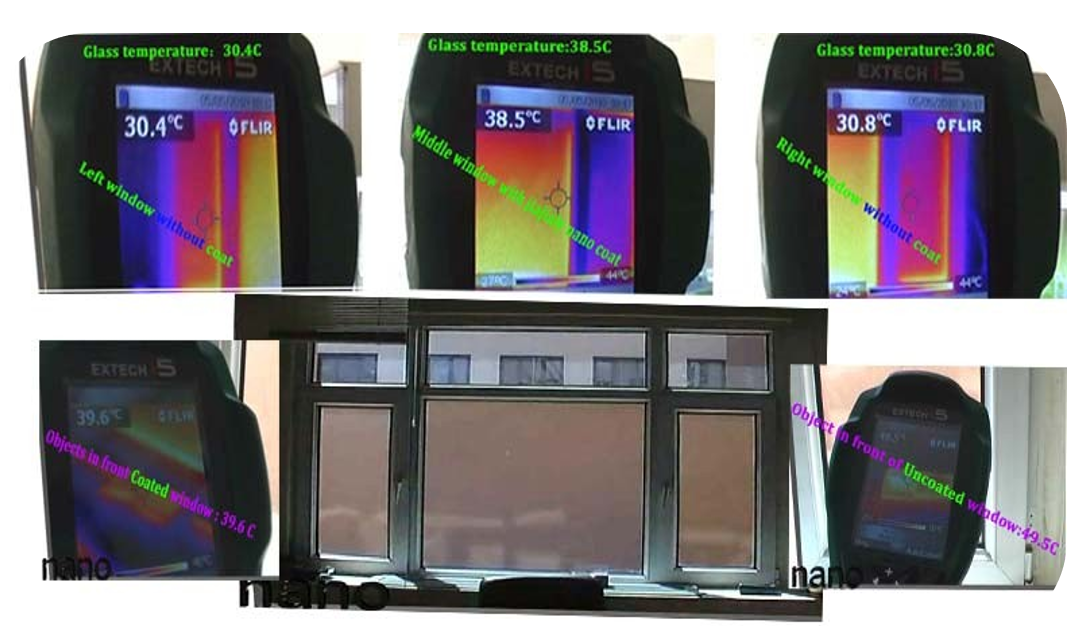

Testing of Coating Effect – Heat Reduction

Coated window surface temperature is about 8℃ higher than uncoated glass;
But inside object temperature in front of coated window is nearly 10℃ lower than that of uncoated window.

Testing of Coating Effect – Visible Light

Test Data by LS180:
UV block:91.7%
IR block: 90%
VLT:75%

Location: Etobicoke, ON, Canada ‐ 6th March
The coated glass retained an additional 10°C of the sun’s radiant energy, keeping that heat from entering the interior space, while still letting in over 70% of visible light.

This translated into a reduction of 54% of all solar heat gain entering the room. The positive comfort and energy impact of these figures increases exponentially as the exterior temperature soars.

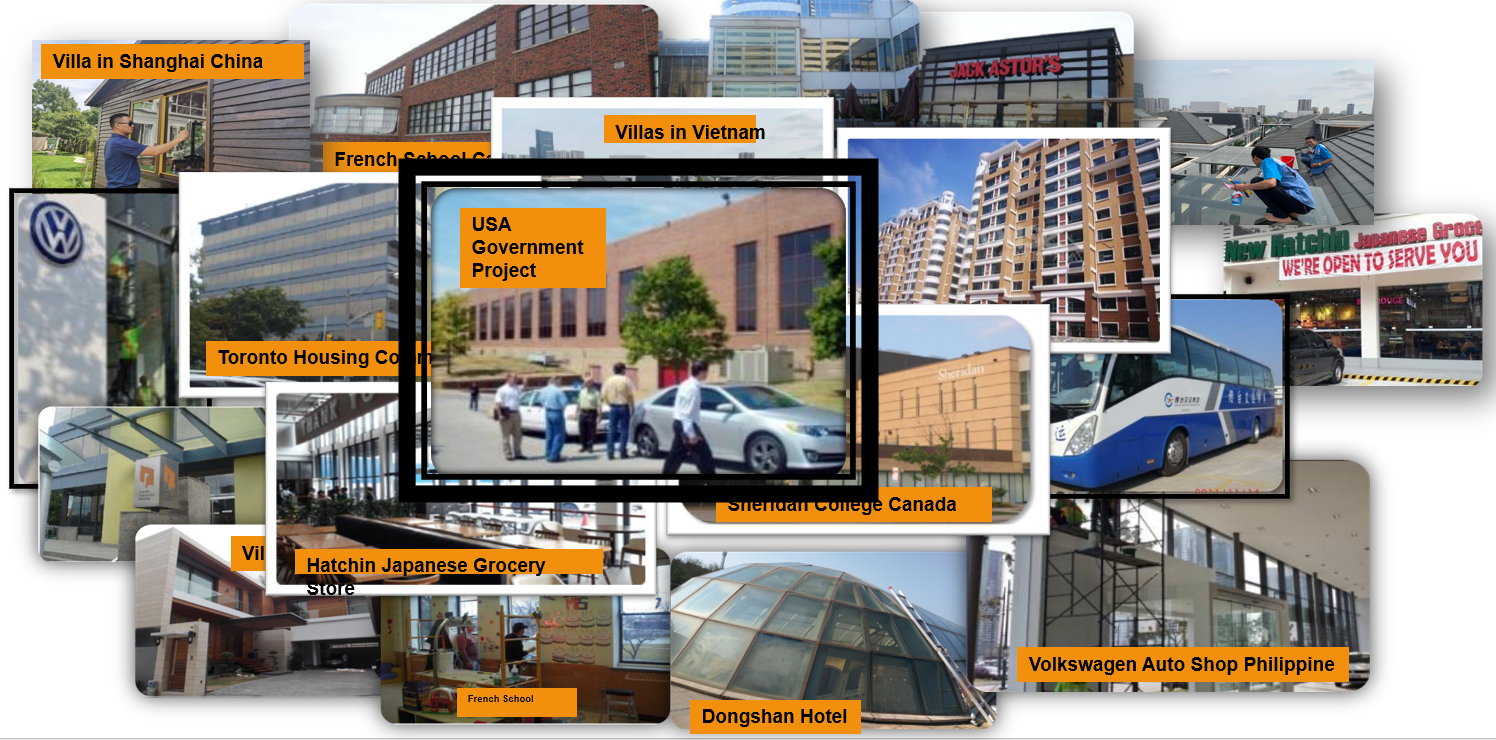

Global Projects - over 46 countries

CEFUTURE

NanoHEAT is an exceptional nanotechnology product that allows the end user to protect both industrial and domestic surfaces with ultra-thin nanoscale layer of molecular coating.

The coating offers resistance to alkalis, acids and solvents and is highly durable, heat tolerant, anti-microbial with non-stick and “easy clean” characteristics.
